Dormitory

668 SF



8 beds

10 lockers



1 module



Dining / Common

2855 SF



Campus main entry

Dining/Common

Warming Kitchen

Case Manager Offices



3 modules



Staff Building

907 SF



Interview Rooms

Staff Offices

Staff Restroom

Staff Break Room



1 module

Emmons Modular Shelter Modules can be manufactured in factories throughout the United States.



The modules are designed to be rapid to install, and movable.

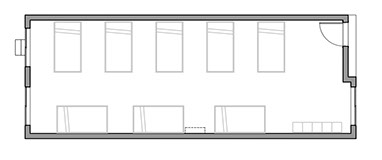

Sleeping is in Dormitories that can accommodate 8 - 10 people, in movable twin beds. There is a space for 1/2 lockers for residents to keep belongings locked up.

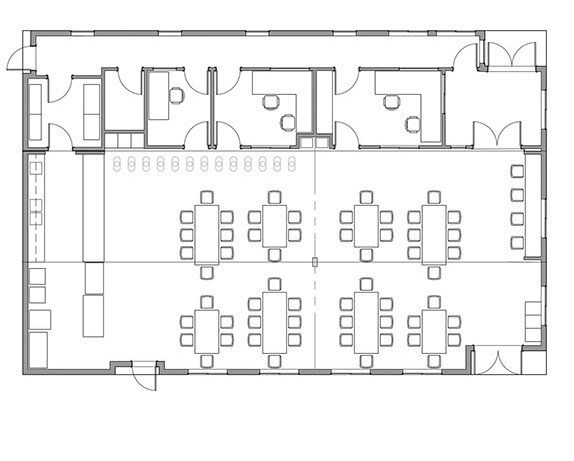

The Dining/Common building has a Dining Room that can seat about 56 people at a time. A warming kitchen is included, that can be upgraded to a full kitchen if desired. Case worker offices are adjacent to the Dining Room with windows overlooking the room. A rear staff only Corridor allows staff options and access to other staff areas. This building is about transparency, community building, and high visibility with enhanced sight lines.

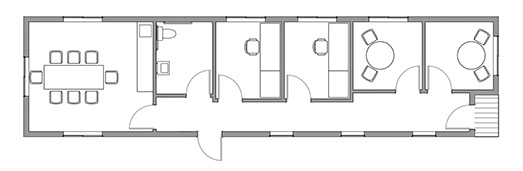

The Staff building has 2 interview rooms, 2 offices, a staff restroom, and a staff lounge.









DORMITORY

CORRIDOR

ENTRY

WARMING

KITCHEN

DINING/COMMON

CASE MANAGERS

STAFF

STAFF

INTERVIEW

INTERVIEW

STAFF

STAFF

STAFF LOUNGE
